Touring and Roadster Front Floorboards

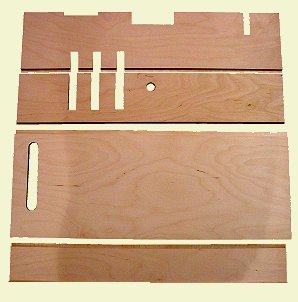

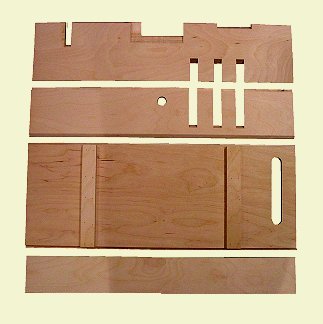

1909 - 1910 Front Floorbooards
This floor board set consists of the #1 and #2 boards (which contain the pedal openings),
the #3 floorboard (which is the main floor board) and the #4 floor board which
is fixed to the body at the base of the seat riser. The #4 floor board does not have the
3/4" x 3/4" raise section against the seat riser that the 11-14 floor boards have.
These floorboards do not include the pedal trim plates, or the emergency brake
trim plate. Those pieces are available seperatly.
|
|
| Top View | Bottom View |
| Part Number | Description |
|---|---|
| 3626E | 11 - 14 Touring and Roadster Front Plywood Floorboards |
| 3626EH | 11 - 14 Touring and Roadster Front Hardwood Floorboards |

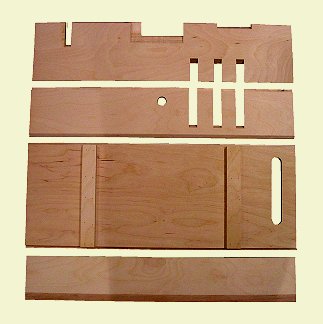

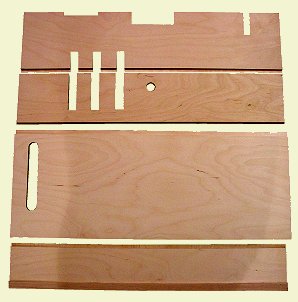

1911 - 1914 Front Floor Boards
This set consists of the #1 and #2 boards (which contain the pedal openings),
the #3 floor board (which is the main floor board) and the #4 floor board which
is fixed to the body at the base of the seat riser. The #4 floor board has the
3/4" x 3/4" raised piece against the seat riser.
These floor boards do not include the pedal trim plates, or the emergency brake
trim plate. Those pieces are available seperatly.
 |
 |
| Top View | Bottom View |
| Part Number | Description |
|---|---|
| 3626E | 11 - 14 Touring and Roadster Front Plywood Floorboards |
| 3626EH | 11 - 14 Touring and Roadster Front Hardwood Floorboards |
1911 Torpedo Roadster - Front Floor Boards
This set consists of the #1 and #2 boards (which contain the pedal openings),
the #3 floor board (which is the main floor board) and the #4 floor board which
is fixed to the body at the base of the seat riser.
These floor boards do not include the pedal trim plates, or the emergency brake
trim plate. Those pieces are available seperatly.
 |
 |
| Top View | Bottom View |
| Part Number | Description |
|---|---|
| 3626E | 11 - 14 Touring and Roadster Front Plywood Floorboards |
| 3626EH | 11 - 14 Touring and Roadster Front Hardwood Floorboards |
1912 Touring Fore Door - Front Floor Boards
This set consists of the #1 and #2 boards (which contain the pedal openings),
the #3 floor board (which is the main floor board) and the #4 floor board which
is fixed to the body at the base of the seat riser. The #2 floor board contains
a notch to clear the door post.
These floor boards do not include the pedal trim plates, or the emergency brake
trim plate. Those pieces are available seperatly.
 |
| Top View |
| Part Number | Description |
|---|---|
| 3626-12P | 11 - 14 Touring and Roadster Front Plywood Floorboards |
| 3626-12H | 11 - 14 Touring and Roadster Front Hardwood Floorboards |
1915 - 1919 Front Floor Boards
This set consists of the #1 and #2 boards (which contain the pedal openings),
and the #3 floor board (which is the main floor board). This set is used with the
earlier style dash shield (prior to 1919).
These floor boards do not include the pedal trim plates, or the emergency brake
trim plate. Those pieces are available seperatly.
 |
| Part Number | Description |
|---|---|
| 3626AQ1 | 11 - 14 Touring and Roadster Front Plywood Floorboards |
| 3626AQH1 | 11 - 14 Touring and Roadster Front Hardwood Floorboards |

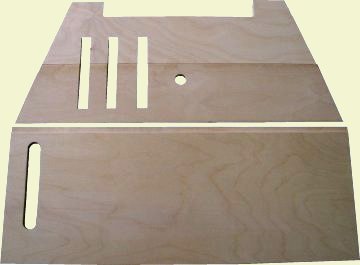

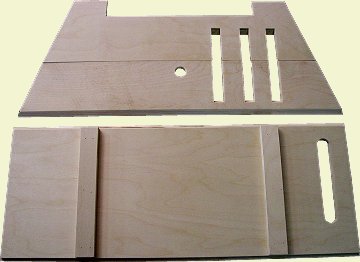

1919 - 1925 Front Floor Boards
This set consists of the #1 and #2 boards (which contain the pedal openings),
and the #3 floor board (which is the main floor board). This set is used with the
later style dash shield (after to 1919).
These floor boards do not include the pedal trim plates, or the emergency brake
trim plate. Those pieces are available seperatly.
 |
 |
| Top View | Bottom View |
| Part Number | Description |
|---|---|
| 3626AQ2 | 11 - 14 Touring and Roadster Front Plywood Floorboards |
| 3626AQH2 | 11 - 14 Touring and Roadster Front Hardwood Floorboards |
1926 - 1927 Front Floor Boards
This set consists of the #1 and #2 boards (which contain the pedal openings),
and the #3 floor board (which is the main floor board). This set is used on the
"improved" car with the cowl mounted gas tank.
These floor boards do not include the pedal trim plates, or the emergency brake
trim plate. Those pieces are available seperatly.
 |
 |
| Top View | Bottom View |
| Part Number | Description |
|---|---|
| 3626BQ | 11 - 14 Touring and Roadster Front Plywood Floorboards |
| 3626BQH | 11 - 14 Touring and Roadster Front Hardwood Floorboards |
